Manufacturing Industrial components and the development of prototypes
As we are basically machine builders, our knowledge of manufacturing parts and prototypes is well rooted in practical experience.
![Tillverkning](https://axelentengineering.com/app/uploads/2023/02/tillverkning-tjanster.jpg)
Manufacturing Machine and spare parts
In our factory we are fully equipped for machining parts, turning, milling, grinding and sparking. We have several CNC-controlled milling machines and lathes at our disposal.
![Jimmy Lund](https://axelentengineering.com/app/uploads/2023/02/Jimmy.jpg)
![Jörgen Åsberg](https://axelentengineering.com/app/uploads/2023/02/Jorgen.jpg)
![](https://axelentengineering.com/app/uploads/2023/01/Axelent-Engineering54_low.jpg)
Manufacturing Small-scale series
Need to produce a small series in a short time? Axelent Engineering produces 1-piece parts or small series in sizes up to 2,500 x 840 mm.
In our factory we are fully equipped for machining parts, turning, milling, grinding and sparking. We have several CNC-controlled milling machines and lathes (NC preparation is carried out in CAM). We also have a 5-axis milling machine for handling complex parts.
We handle all kinds of materials, such as plastic, stainless steel, copper, steel and cast iron. Along with hardening, painting and a variety of surface treatments, we are often the only contact you need for the success of your project.
![Prototyper](https://axelentengineering.com/app/uploads/2023/02/Prototyper-scaled.jpg)
Manufacturing Prototypes
Creating a prototype requires an idea and a thought. Sometimes we are involved at this early stage and together with the customer we make a drawing that grows into a physical model in our 3D printer. Of course, we can also start prototyping based on a drawing produced by the customer.
Regardless of the approach, we build a model that we then test drive. We modify and adjust if necessary and then create a model that will form the basis of the tool.
Manufacturing Our machine park
-
5 x five-axis milling machines

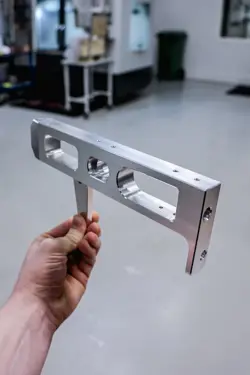

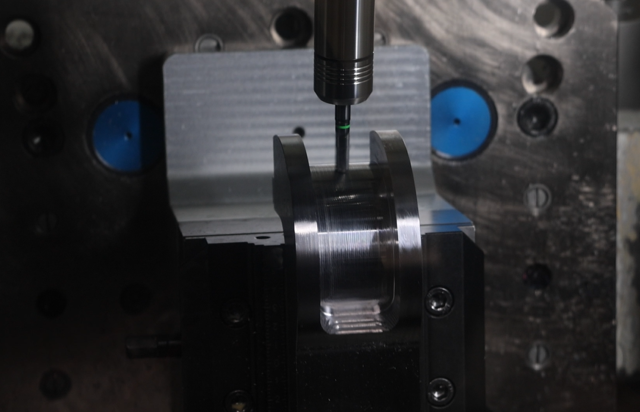

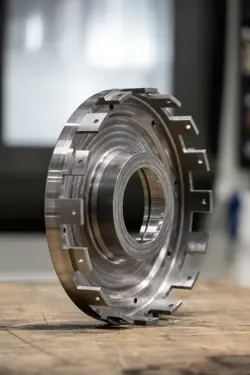

Kitamura Mytrunnion 4G. X500 Y500 Z450 60 tools. Spindle probe, Table probe.
-
Multi-op

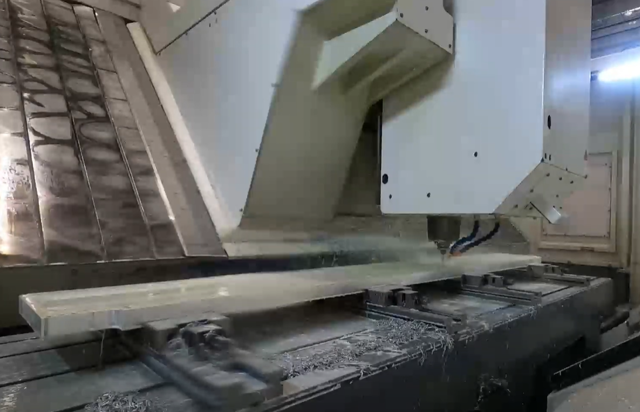

Cincinnati FTV. X2540 – Y815- Z800. S10000. 50 tools. Max length of part 3800 mm. Max width 1200 mm.
-
Multi-op
Cincinnati CFV i. X1050-Y540- Z560. S10000. Spindle test, on-board test.
-
Multi-op
HAAS VF-2SSYT. X762-Y508- Z508. S12000. 40 tools Spindle probe, Table probe. Openable short side.
-
Multifunctional machine

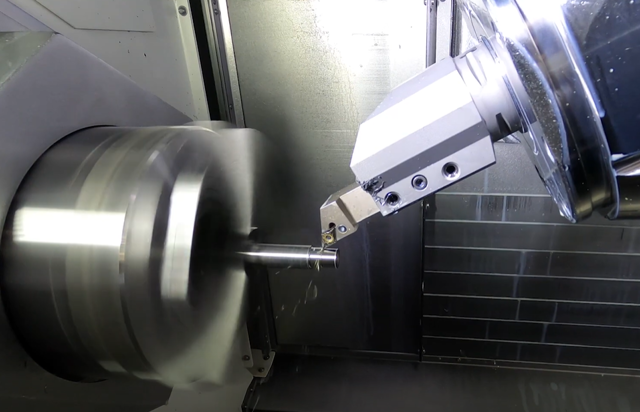

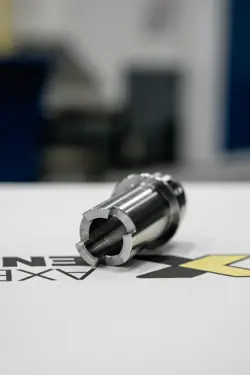

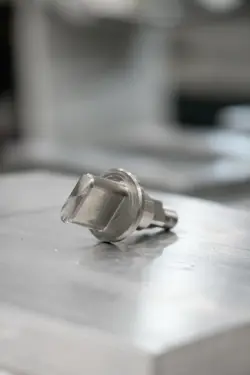

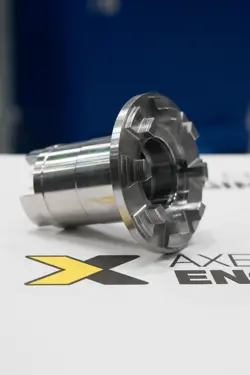

MAZAK INTEGREX i-200S X 1000 numerically controlled Multi-Tasking machine with Y and B axis and Sub spindle. Equipped with 36 tool places and fully simultaneous 5-axis milling.
-
CNC-lathe

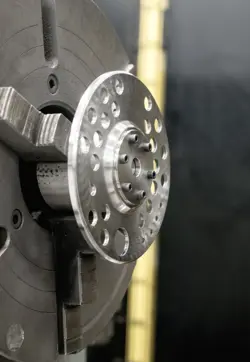

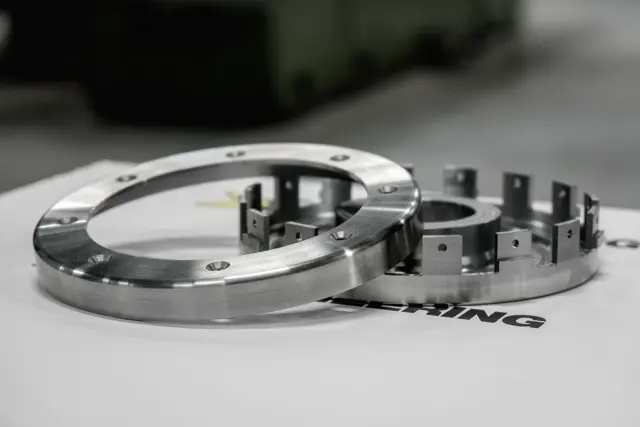

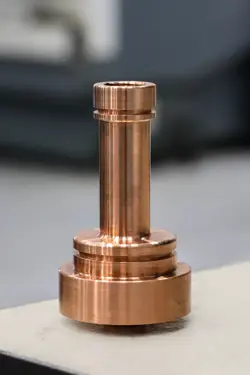

2 HAAS ST-30Y Ø584 Z457. Spindle passage Ø76 mm S3400. Y-Axis MovementY±50,8 mm. S3000. Milling length 400 mm between centers. Guided C-axis. (Chuck) Driven tools.
-
CNC-lathe
Strand S5. Ø385 Z1200. Spindle passage Ø73 mm. S2500.
-
Lathe
Profila 12" Over cross slide Ø350. Over bed Ø630. L 2500. Removable gap. Ø900 L 300. Spindle passage Ø74 mm.
-
Bed cutter
Correa X2500 Y900 Z600
-
Preparation system
5 pieces Edge Cam
-
Wire spark
Fanuc Robocut a – 1iE. board surface X600 Y400 Z310
-
Laser marking machine
Large marker board, 375x300x150 mm (LxWxH) up to 40%.
